Hertz HCP 4DK

Hertz HCP 4DK: eine D-CLASS 4-Kanal Endstufe mit beindruckender Leistung 120 W x 4 @ 4 Ω.\n\n

Beschreibung:

• Dank des CLASS D Layouts der neuesten Generation erreicht die neue HCP 4DK die beeindruckende Leistung von 120 W x 4 @ 4 Ω.\n\n
• Dabei bleiben die kompakten Abmessungen und alle einzigartigen Merkmale, die die Hertz Compact Power zur besten ihrer Klasse gemacht haben, erhalten.\n\n

Technische Daten:

HAUPTMERKMALE

• Channels: 4 - 3 - 2

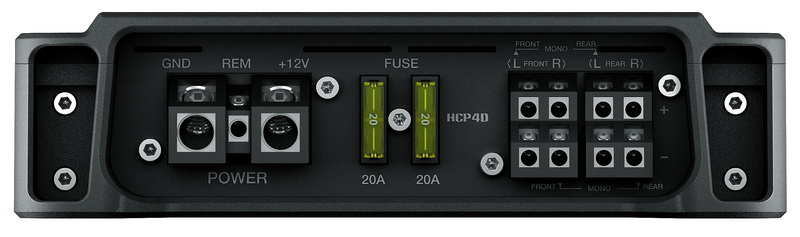

POWER SUPPLY

• Power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 35 A
• Idling current (power ON/OFF): 1.6 A / 0.05 mA
• Consumption @ 2 Ω, 14.4 VDC (Max Musical Power): 40 A
• Remote In: 4 ÷ 16 VDC - 1 mA
• ART: Automatic Remote Turn-On/Off with Speaker-In

AMPLIFIER STAGE

• Distorsion - THD (100 Hz @ 4 Ω): 0.03%
• Bandwidth: 10 ÷ 35k Hz
• S/N Ratio (A weighted @ 1 V): 105 dB
• Damping factor (100 Hz @ 4 Ω): 200
• Pre-In sensitivity: 0.2 ÷ 5 VRMS
• Speaker-In sensitivity: 0.8 ÷ 20 VRMS
• Load impedance (MIN):
• @ 4 Ch:       2 Ω
• @ 3 Ch:       2 Ω + 2 Ω + 4 Ω
• @ 2 Ch:       4 Ω
• Max size (cm / in.): 31,5 x 19,0 x 5,0 / 12.40 x 7.48 x 1.97
• Weight (kg / lb.): 2,73 / 6.01
• Adjustable Crossovers: yes

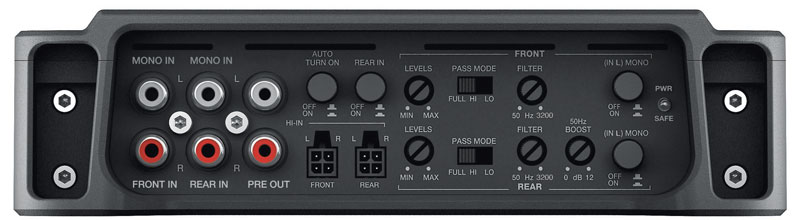

EINGANGS/FILTER

• INPUTS : PRE IN / SPEAKER IN
• Pre out FULL range (FRONT): Yes
• FRONT Ch. filters FULL: Yes
• Hi-Pass: 50 ÷ 3.2k Hz @ 12 dB/Oct
• Lo-Pass: 50 ÷ 3.2k Hz @ 12 dB/Oct.
• REAR Ch. filters FULL: Yes
• Hi-Pass: 50 ÷ 3.2k Hz @ 12 dB/Oct
• Lo-Pass: 50 ÷ 3.2k Hz @ 12 dB/Oct.
• FRONT Ch. MONO (on/off): Yes
• REAR Ch. MONO (on/off): Yes
• BOOST 50 Hz (adjust): (0 ÷ 12) dB

AUSGANGSLEISTUNG

• Output Power (RMS) @ 14.4 VDC, THD 1%
• 4 Ch:       120 W x 4 (4 Ω)
• 4 Ch:       220 W x 4 (2 Ω)
• 3 Ch:       120 W x 2 (4 Ω) + 440 W x 1 (4 Ω)
• 3 Ch:       220 W x 2 (4 Ω) + 440 W x 1 (4 Ω)
• 2 Ch:       440 W x 2 (4 Ω)
• Output Power (RMS) @ 14.4 VDC, THD 10%:
• 4 Ch:       150 W x 4 (4 Ω)
• 4 Ch:       250 W x 4 (2 Ω)
• 3 Ch:       150 W x 2 (4 Ω) + 520 W x 1 (4 Ω)
• 3 Ch:       250 W x 2 (2 Ω) + 520 W x 1 (4 Ω)
• 2 Ch:       520 W x 2 (4 Ω)

CEA 2006-A Ratings:

• RMS Power (4 Ω, ≤1 %THD + N, 14.4 V): 110 W x 4 Ch
• S/N Ratio (ref. 1 W output): 85 dBA
• Total Power RMS: 2000 W
• Maße: Länge x Breite x Höhe cm: 31,5 x 29,1 x 5,0
